Rock Driller

Model	Dia. Of hole	Depth of hole	Push length	Working pressure	Air comsumption	Max lifting capacity	Remark
Model	mm	m	m	MPa	M3/min	KN	Remark
Down Hole Drill
KC140	105-140	≥30	3	1.0-2.4	22	25	High Pressure Crawler Drill
KC120	105-120	≥30	3	0.7-1.4	21	20	Mdeium Pressure Crawler Drill
KY100	80-105	≥25	2	0.7-1.0	13	15	Low Pressure Crawler Drill
KY120	80-115	≥25	3	0.7-1.4	13	20	Low(Mdeium)Pressure Crawler Drill
KY140	105-140	≥25	3	1.0-2.4	15	20	High(Mdeium)Pressure Crawler Drill
KW10	115-254	120	3	1.05-2.46	16-30	70	WATER DRILL
KY8S	105-125	≥25	3	1.0-2.4	15-21	20	High Pressure Crawler Drill
KY100J	80-105	≥25	2	0.7-1.0	≥10	15	Low Pressure Crawler Drill
Down the Hole Drill
KQY90	80-130	≥20	1	0.5-0.7	7	15	Air & Hydraulic
KSZ100	80-130	≥20	1	0.5-0.7	12	9.6	All Air
KQD100	80-130	≥20	1	0.5-0.7	7	9.6	Motor Drive
KQD70	60-80	≥15	1	0.5-0.7	≥3.5	3600	Motor Drive
Model	Weight	Length	Cyinder Dia.×Stroke	Working pressure	Impact energy	Impact ferquency	Air comsumption
Model	kg	mm	mm	MPa	J	HZ	I/s

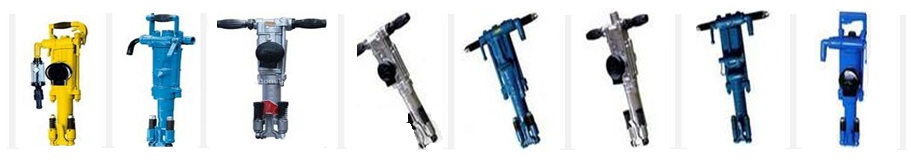

Hand-hold rock drill
YO15	15	550	58×45	0.4-0.63	≥21	≥32	≤20
YO18	18	550	58×45	0.4-0.63	≥22	≥32	≤20
Y19A	19	600	65×54	0.4-0.3-63	≥28	≥28	≤37
YO20	20	561	63×55	0.4-0.63	≥26	≥33	≤33
Y26	26	650	65×70	0.4-0.63	≥30	≥23	≤47
Air leg rock drill
YT23	24	628	76×60	0.4-0.63	≥65	≥37	≤78
YT23D	24	668	70×70	0.4-0.63	≥65	≥31	≤67
YT24	24	678	70×70	0.4-0.63	≥65	≥31	≤67
ZY24	25	690	70×70	0.4-0.63	≥65	≥30	≤67
YT28	26	661	60 ×60	0.4-0.63	≥70	≥37	≤81
MZ7665	26	720	76×70	0.4-0.63	≥70	≥37	≤81
Model	Dia. Of hole	Depth of hole	Angle length	Push length	Working pressure	Air comsumption	KN
Model	mm	m	。	m	MPa	M3/min	KN
Anchoring drill
MGY30	110-150	40	-19	1.5	0.7-1.2	12	25
MGY60	110-150	60	-19	1.5	0.7-1.2	15	35
MGY80	110-150	60	-19	1.5	0.7-1.2	18	40
