Chassis:

Engine:

Diesel,

Euro 3,

Cummins 260HP

1025.Nm

Transmission:

9-speed manual

Drive configuration:

4×2

Curb weight:

approx. 8,000 kg

Gross weight:

18000kg

Frame:

Reinforced, adapted for CMU installation

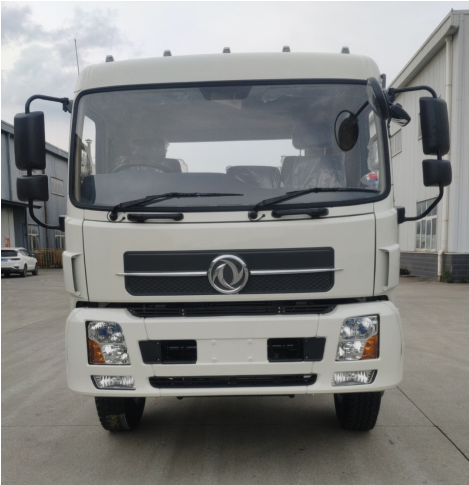

Driver’s cab:

All-metal, two-seater, day cab

Wheelbase:

The chassis wheelbase is 5100mm.
Overall vehicle dimensions: 9000 × 2550 × 3850 mm

Chassis dimensions：

8900 × 2300 × 2950 mm

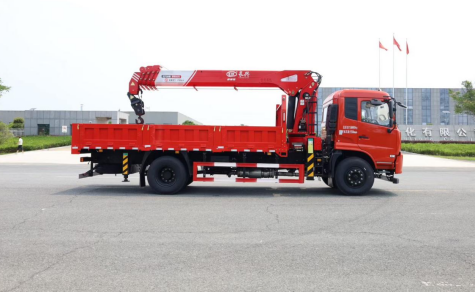

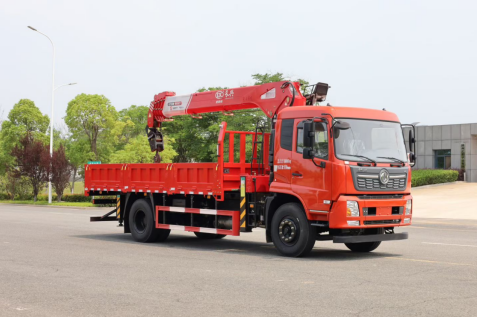

Crane-Manipulator Unit:

Lifting capacity:

Equipped with a 6.3-ton crane

Max. lifting height:

Approximately 13–14 meters

Drive:

The drive unit is operated from the top with a control lever.

Boom:

4-section boom

Flatbed Platform:

Length:

6.5m

load capacity:

Approximately 6–7 tons

Optional

Open-top container side panels, anti-corrosion treatment

With

GPS Tracking System
